Product Details:
|
| Material: | Iron | Nominal Voltage: | 51.2 |
|---|---|---|---|
| Capacity: | 100ah/others | Weight: | 53kg |
| Battery Size: | Energy Storage Batter | Display: | LCD |
| The Charging Ratio: | DC 58.4V | OEM: | Accepted |
| Life Times: | ≥3500 | ||
| High Light: | 200ah powerwall 10kwh,10kwh lithium battery solar storage,51.2v powerwall 10kwh |
||
51.2v 48v 100ah 150ah 200ah Powerwall 10kwh Home Lithium Battery Solar Storage
Features:
1.Battery bank Expandable in parallel.
2.51.2v LFP based ESS, long life.
3.Safest battery with modular design.
4.Wide operating temperature range.
5.Flexible control that covers all commercial fields.
6.Quick and Easy Installation.
7.Maintenance free.
Specification:

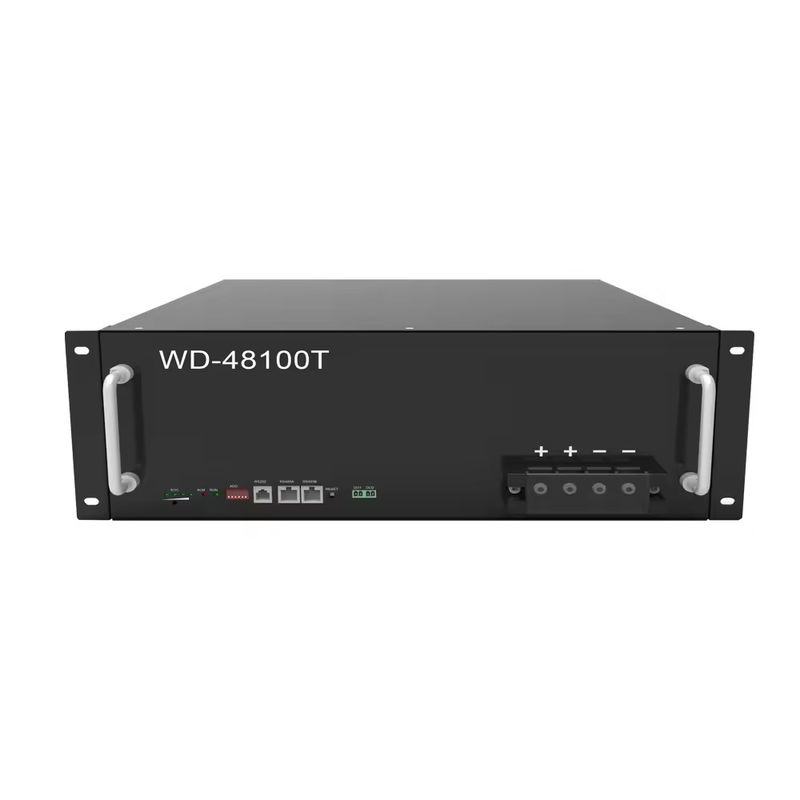

| Model | WD-48100T | WD-48150T | WD-48200T |
| Battery type | lithium iron phosphate battery | ||
| Nominal voltage | 51.2V DC | ||
| Nominal capacity | 100Ah | 150Ah | 200Ah |
| Cell specs | 3.2V/100Ah | 3.2V/150Ah | 3.2V/200Ah |
| Combination method | 16S1P | ||
| Dimensions(W*L*H) | |||
| Dimensions(W*L*H) | 442(including ears 482)×505×133mm 3U | 442(including ears 482)×505×222mm 5U | 442(including ears 482)×550×266mm 6U |
| Weight | 53kg | 70kg | 100kg |
| Charging temperature | 0ºC~45ºC | ||
| Discharging temperature | -15ºC~55ºC | ||
| Storage temperature | -25ºC~60ºC | ||
| Operating humidity | ≤95%(40ºC±2ºC) | ||
| Storage humidity | ≤95%(40ºC±2ºC) | ||
| Working atmospheric pressure | 70kpa-106kpa | ||
| Designed life | > 10 year | ||
| Cycle life | ≥6000 times | ||
Applications:
FAQ:
1. Are your factory or trading company?
We are the original factory, specializing in reliable and safe new energy lithium batteries development and manufacturing. We have senior engineer team with more than 15 years experience in this field. We also provide all kinds of OEM/ODM services for clients all around the world.
2. Can I place a sample order?
Yes, we accept sample order to test and check the quality, battery can be made as required.
3. How long is the trial period for samples?
About two weeks.
4. How long does it take for the production?
Around 20 to 25 days.
5. What's your payment and delivery terms?
Payment terms: By T/T, 30% for deposit, and balance all before shipment.
6. Why do you ask me so many questions? I just want to know the price !
Sorry for disturbing you. But the discharge current, voltage, dimensions etc. information is very important for us to produce the correct battery for you. If we make the battery which can not achieve the real application requirement, it will put both of us in a very embarrassing and lose-lose condition. We will need to get all the information before we make you the right quotation and proceed the project.
7. What services can we provide?
Accepted Delivery Terms: FOB, EXW, DDP；
Accepted Payment Currency: USD, CNY, EURO;
Accepted Payment Type: T/T, Credit Card, PayPal, Western Union, L/C;
Contact Person: Mr. Huang
Tel: 13714593862
